The Aero Acoustic Analyzer (AAA) is a comprehensive platform for aeroacoustic analysis, research, development, and testing in aircraft development applications. Featuring up to 192 channels of digital/analog I/O with Dante and MADI compatibility, and sampling rates up to 192kHz, the AAA handles demanding high-frequency acoustic analysis requirements. The integrated PC configuration is fully customizable at order: select Intel Core i3, i5, or i7 processors; 4GB to 64GB RAM; and 500GB to 4TB SSD storage. All in a compact 1U rack-mount chassis with integrated GPU.

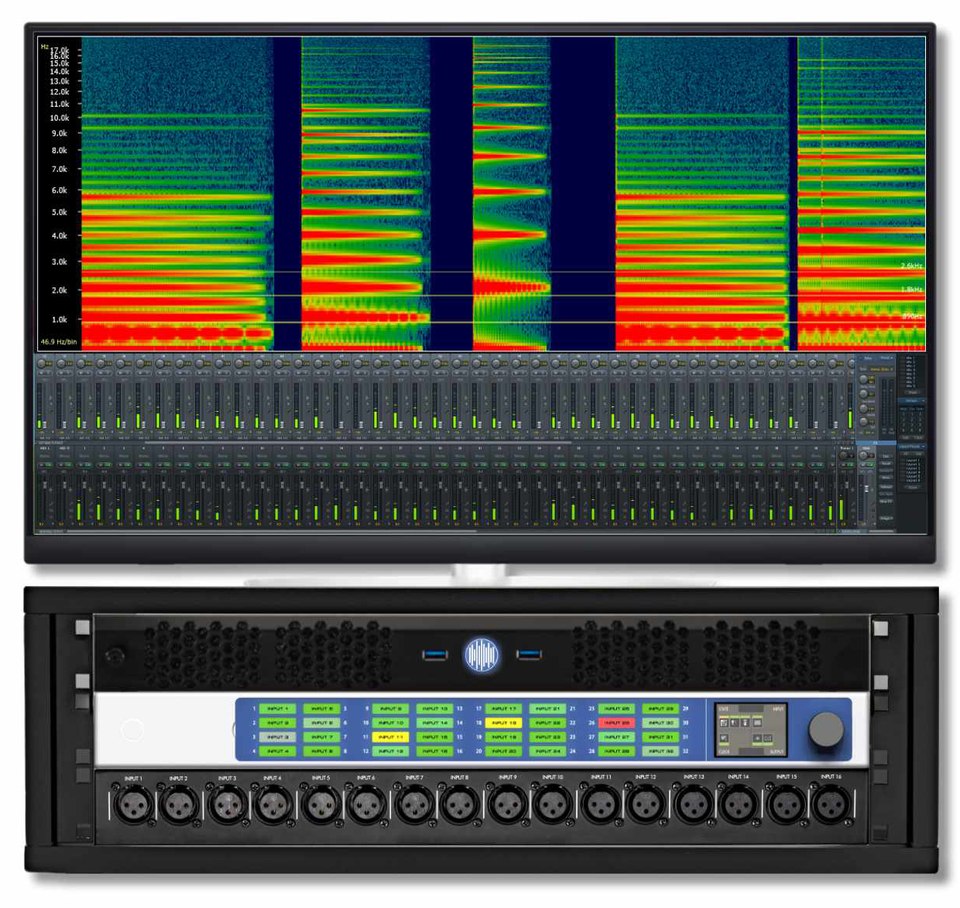

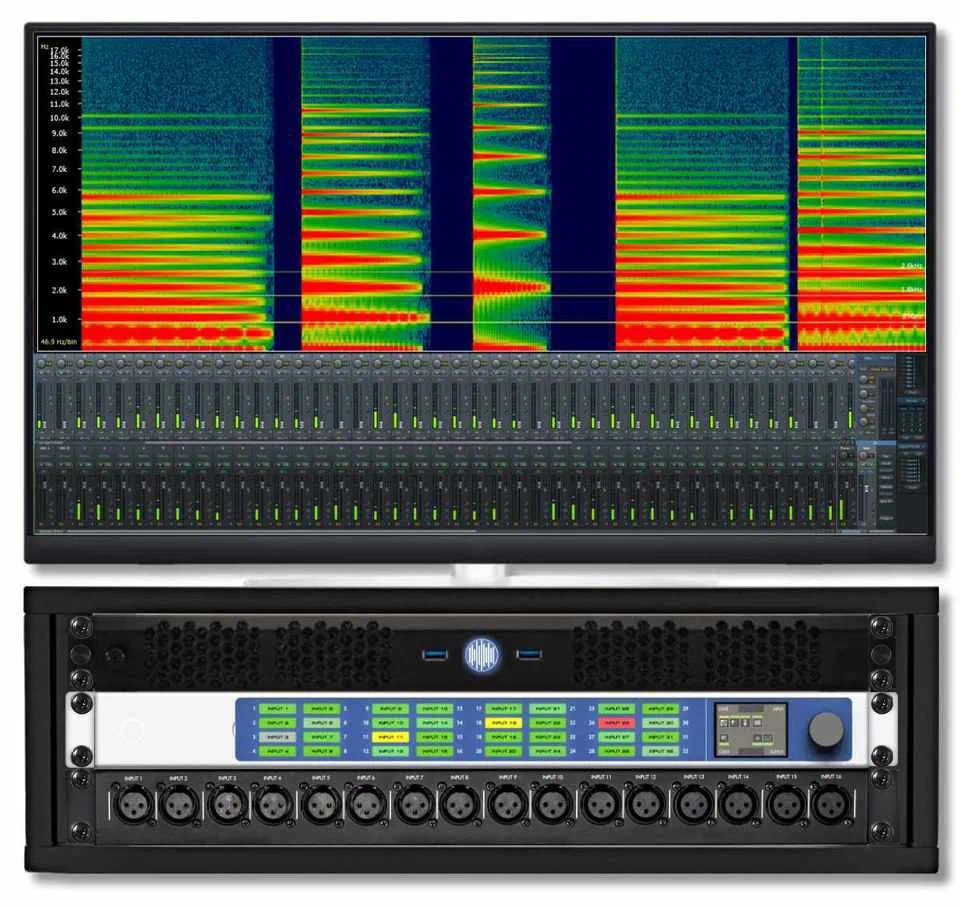

This system, combining reliable dedicated hardware with an audio development kit, is ideal for building various acoustic measurement application systems essential for aircraft development. Customers who adopt this system will also receive three months of development support services.
| Item | Aero Acoustic Analyzer 100 | Aero Acoustic Analyzer 200 | Aero Acoustic Analyzer 300 | Aero Acoustic Analyzer 400 |
|---|---|---|---|---|
| Audio Development Kit | PrecisionAudio SDK | PrecisionAudio SDK | PrecisionAudio SDK | PrecisionAudio SDK |
| Supported Sampling Rate | 192KHz, 128KHz, 96KHz, 64KHz, 48KHz | 192KHz, 128KHz, 96KHz, 64KHz, 48KHz | 192KHz, 128KHz, 96KHz, 64KHz, 48KHz | 192KHz, 128KHz, 96KHz, 64KHz, 48KHz |
| Maximum Input Channels | 256 | 256 | 256 | 256 |
| Maximum Output Channels | 256 | 256 | 256 | 256 |
| Supported Languages | C, C++, C#, Python, MATLAB | C, C++, C#, Python, MATLAB | C, C++, C#, Python, MATLAB | C, C++, C#, Python, MATLAB |
| Supported Audio Interface | ASIO | ASIO | ASIO | ASIO |
| Supported Operating System | Windows 11 | Windows 11 | Windows 11 | Windows 11 |
| ——————————- | ——————————————- | ——————————————- | ——————————————- | ——————————————- |
| Supported Audio Interface(1) | MADI, Dante, AVB, ADAT, Analog | MADI, Dante, AVB, ADAT, Analog | MADI, Dante, AVB, ADAT, Analog | MADI, Dante, AVB, ADAT, Analog |
| ——————————- | ——————————————- | ——————————————- | ——————————————- | ——————————————- |
| CPU | Intel Core i i3-13100 2.5GHz | Intel Core i i3-14100 2.5GHz | Intel Core i i5-14400 2.6GHz | Intel Core i i7-14700 3.4GHz |
| RAM | 8GB (2x 4GB Crucial DDR4 2666MHz DIMM ) | 16GB (2x 8GB Crucial DDR4 3200MHz DIMM ) | 32GB (2x 16GB Crucial DDR4 3200MHz DIMM ) | 64GB (2x 32GB Crucial DDR4 3200MHz DIMM ) |
| SSD | 1TB M.2 PCIe 4.0 Samsung 990 Pro SSD | 1TB M.2 PCIe 4.0 Samsung 990 Pro SSD | 2TB M.2 PCIe 4.0 Samsung 990 Pro SSD | 4TB M.2 PCIe 4.0 Samsung 990 Pro SSD |
| GPU | PNY RTX A400 4GB with 4xMiniDP | PNY RTX A1000 8GB with 4xMiniDP | PNY RTX A2000 12GB with 4xMiniDP | PNY RTX A4000 16GB with 4xDP |
| Power Supply | 500W Silverstone AC/DC | 500W Silverstone AC/DC | 600W Enhance AC/DC | 600W Enhance AC/DC |
